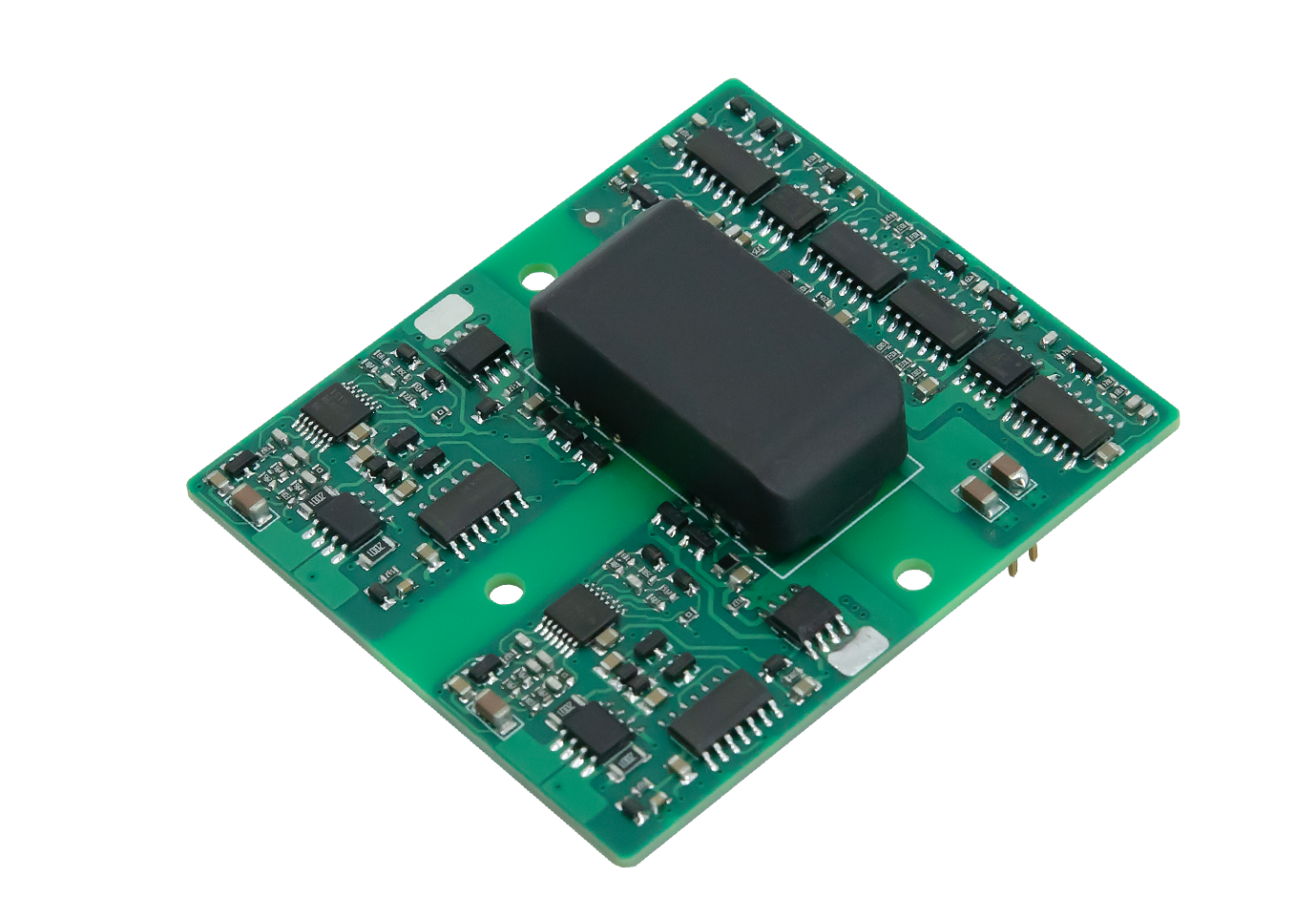

2QD32PRO-S is a medium- and high-power, high-reliability, dual-channel driver designed specially for SEMIKRON SKYPER 32PRO. It is fully compatible with SEMIKRON SKYPER 32PRO, and serves directly as a substitute without any effort in adjusting or redesign the driver for a specific application.
2QD32PRO-S is suitable for two-level topologies constructed with IGBT modules up to 1700V, driving IGBT modules combined with a compatible base plate.
PV inverters |
Energy storage converters |
Wind converters |
High-power SMPS |
Dual-channel IGBT gate driver core |
Blocking voltage up to 1700V |
1W driving power per channel |
±15A peak current |
Integrated with isolated DC/DC converters |
PWM interlock protection |
Primary/secondary under-voltage protection |
VCE short-circuit protection |
Short pulse suppression |
| Maximum Voltage of Power Device | 1700V | Maximum Switching Frequency | 50kHz |
| Turn-ON Voltage | 15V | Turn-OFF Voltage | -7V |
| Driving Power | 2W | Gate Driving Current | ±15A |
| Power Supply Voltage | 15V | Maximum Supply Current | - |
| Operating Temperature | -40~85℃ | Primary and Secondary Side Insulation Voltage | 5000Vac |
