Driver Cores

日本亚洲欧美国产ay,亚洲欧美中文高清在线专区,欧美AⅤ中文字幕电影,永久免费视频片在线观看

Product Description Product List Featured Downloads

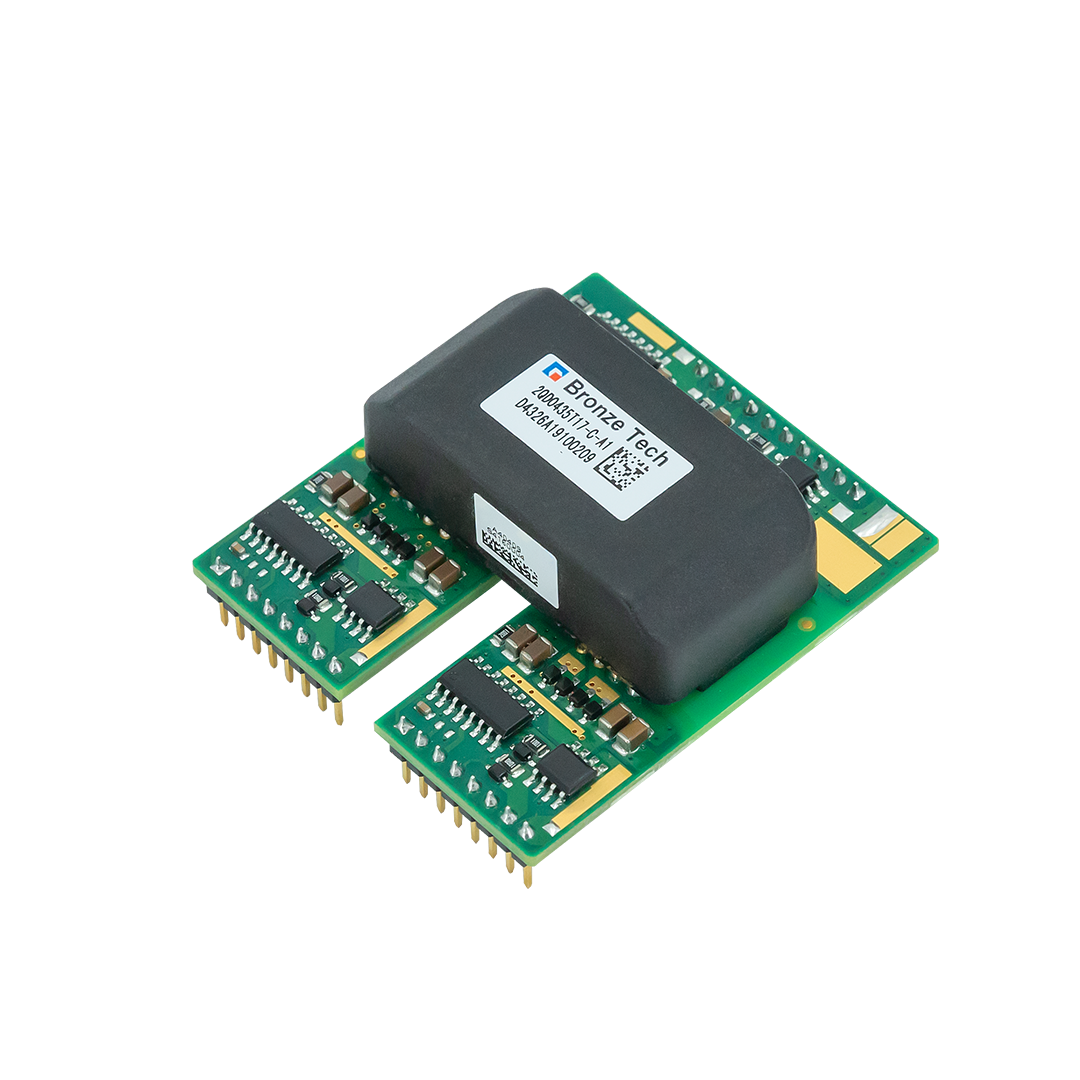

Based on different application requirements, Bronze Technologies launches a variety of driver cores with driving power ranging from 1W to 5W and peak current ranging from ±8A to ±35A, core driver circuitry is provided as “ASIC”. Customers can select the best-fit driver cores according to different requirements; with a simple external circuitry design, the performance of the driver core can be maximized and the IGBT module can operate in the optimal state, ensuring stable and reliable long-term operation of the system.

Product List

Clear All

Part Number	Power Device Voltage（V） Select Power Device Voltage V V OK Cancel	Power Device Select Power Device IGBT SiC MOSFET OK Cancel	Number of Channels Select Number of Channels OK Cancel	Output Power（W） Select Output Power（W） W W OK Cancel	Maximum Output Current（A） Select Maximum Output Current（A） A A OK Cancel	Maximum Switching Frequency（kHz） Select Maximum Switching Frequency（kHz） kHz kHz OK Cancel	Ambient Temperature（℃） Select Ambient Temperature（℃） ℃ ℃ OK Cancel
2QD32PRO-S	1700	IGBT	2	4	30	60	-40~85
2QD32R-S	1700	IGBT	2	4	30	60	-40~85
2QD15A17K-C	1700	IGBT	2	4	30	60	-40~85
2QD30A17K-I-xx	1700	IGBT	2	4	30	60	-40~85
2QD0435T17-C-xx	1700	IGBT	2	4	35	100	-40~105
2QD0108T17-C-xx	1700	IGBT	2	1	8	50	-40~85
2QD0535T33-C-xx	3300	IGBT	2	5	35	100	-40~85
