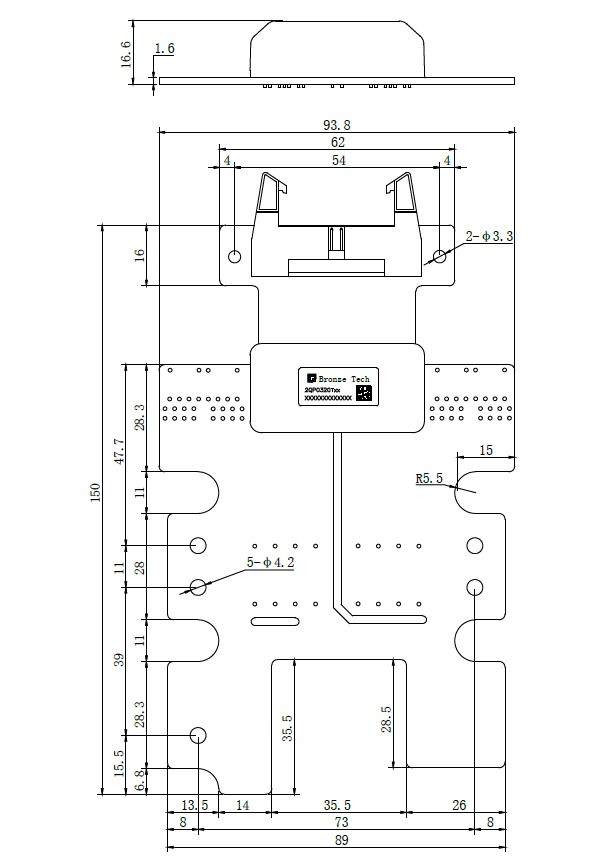

2QP0320Txx is a medium power, dual-channel Plug-and-Play gate driver designed for high reliability applications based on the ASIC chipset developed by Bronze Technologies.
2QP0320Txx is suitable for half-bridge topology built with PrimePack? package lGBT modules up to 1700V. The plug-and-play capability of the driver allows immediate operation without adaptions after assembly.
Energy storage converters |
Wind power converters |
PV inverters |
Locomotive auxiliary power supply |

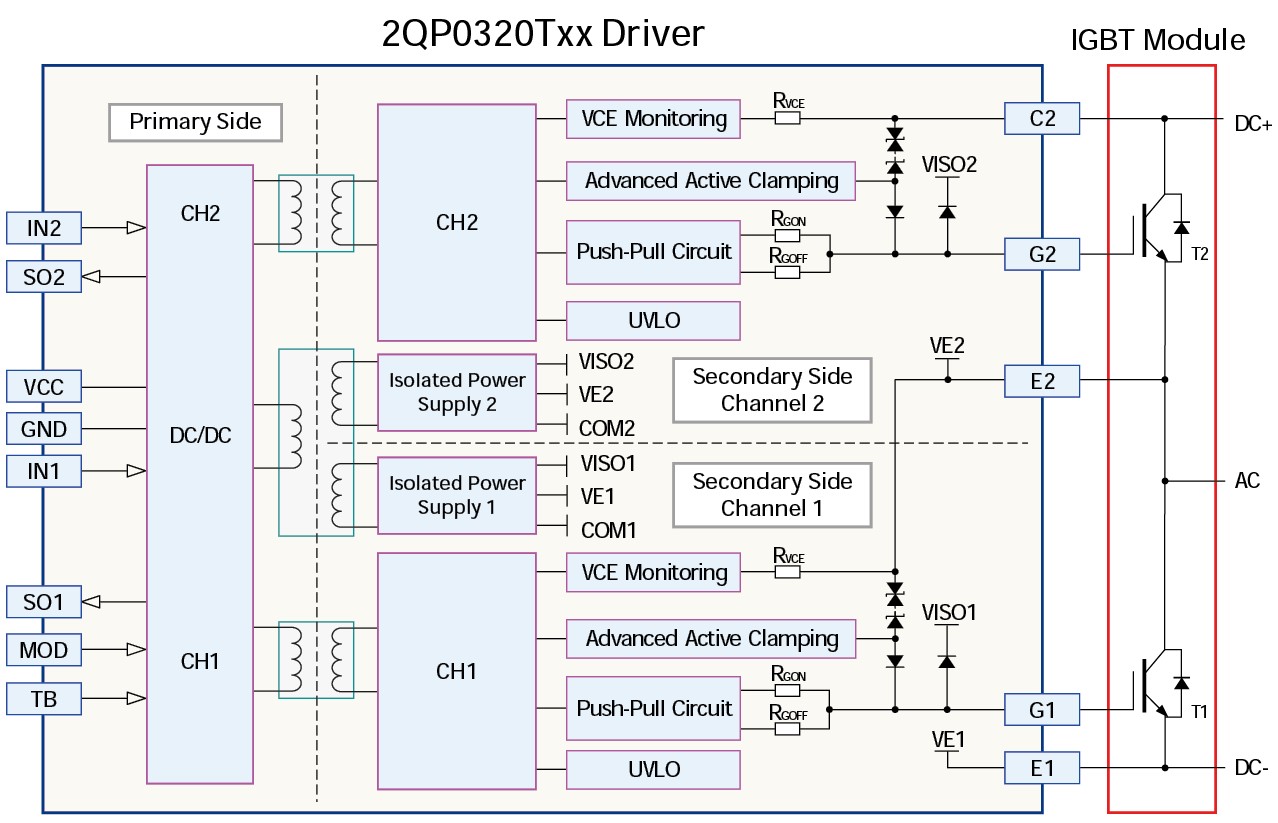

Dual-channel IGBT gate driver |
Blocking voltage up to 1700V |
Peak current ±20A, 3W output power per channel |
Up to 6000V isolation voltage |
Direct/half-bridge mode available |
Primary/secondary side undervoltage lockout |
IGBT short-circuit protection integrated |
Advanced active clamping integrated |
| Maximum Voltage of Power Device | 1700V | Maximum Switching Frequency | 50kHz |
| Turn-ON Voltage | 15V | Turn-OFF Voltage | -10V |
| Driving Power | 3W | Gate Driving Current | ±20A |
| Power Supply Voltage | 15V | Maximum Supply Current | |
| Operating Temperature | -40~+85℃ | Primary and Secondary Side Insulation Voltage | 6000Vac |
Follow us on WeChat
Typical Applications
Features
Key parameters
