2QP0435Txx-x2x

2QP0435Txx-x2x is a dual-channel driver designed based on our self-developed ASIC chip for medium power and high reliability applications.

The 2QP0435Txx-x2x is suitable for the two parallel schemes of the EconoDual package IGBT module at 1700V and below. The plug-and-play function enables the drive board to be directly welded to the IGBT, and there is no need for transfer processing, which can safely and reliably drive and protect the IGBT module.

Bronze_2QP0435Txx-x2x_描述與應用手冊_Rev.0.0 Bronze_2QP0435Txx-x2x_數據手冊_Rev.0.0

Typical Applications Features Key parameters

Typical Applications

Rail transit auxiliary power supply	SVG	APF
High power switching power supply

Features

1700V EconDual?3 package half-bridge parallel connection plug-and-play IGBT driver	±35A peak current per channel, 4W driving power	Isolated DC/DC converter integrated
Primary/secondary undervoltage lockout	Advanced active clamping	IGBT short-circuit protection
6500Vac isolation voltage

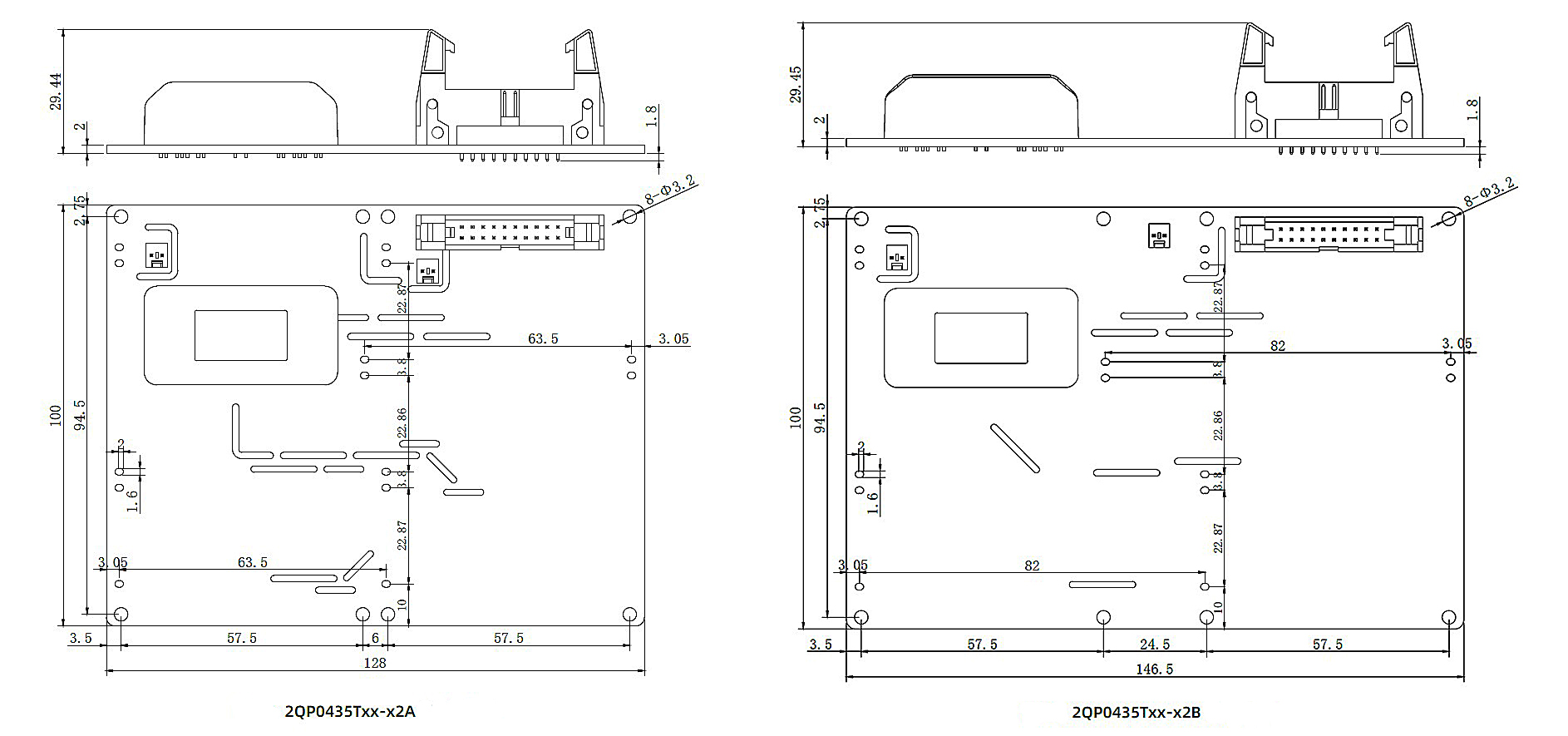

Mechanical Structure

Get a quick overview of overall system functionality.

View full size

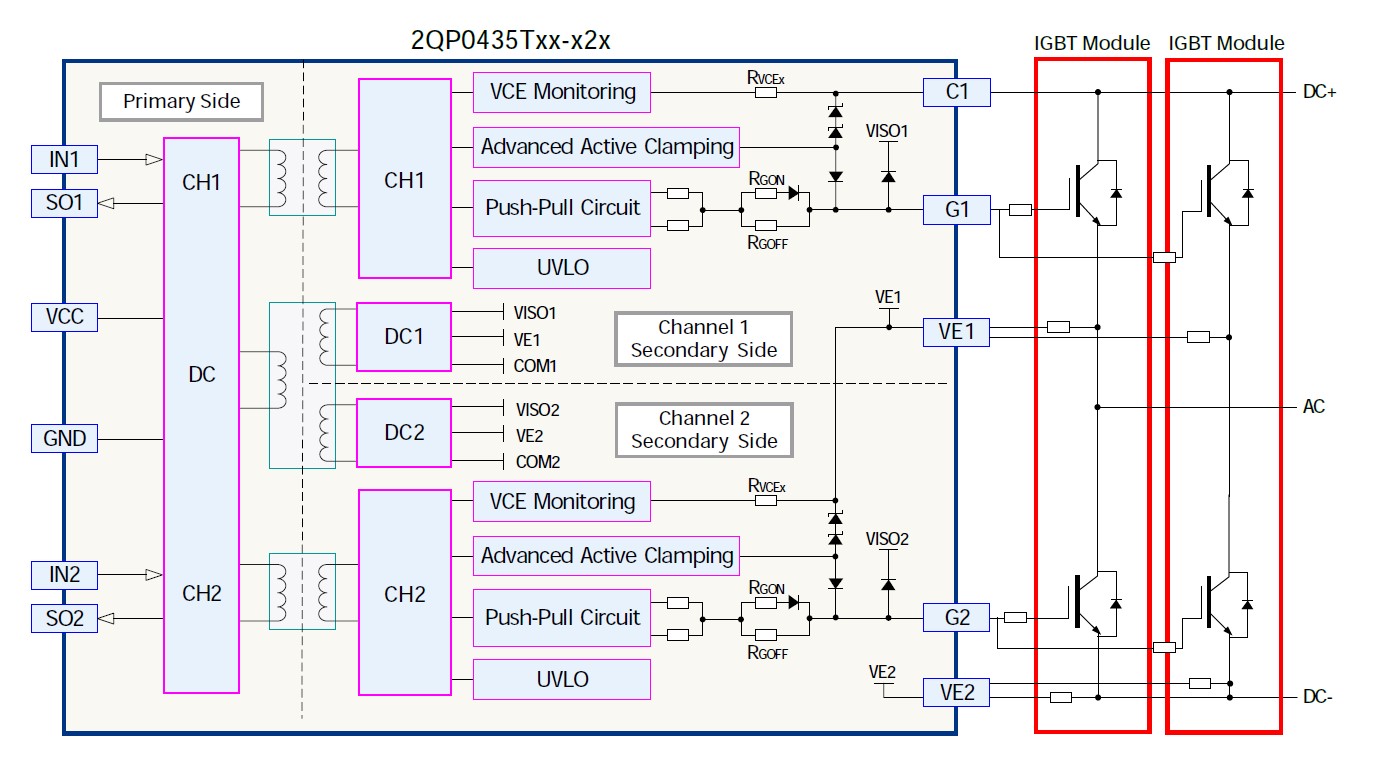

Block Diagram

Get a quick overview of overall system functionality.

View full size

Key parameters

Maximum Voltage of Power Device	1700V	Maximum Switching Frequency	8kHz
Turn-ON Voltage	15V	Turn-OFF Voltage	-10V
Driving Power	4W	Gate Driving Current	±35A
Power Supply Voltage	15V	Maximum Supply Current	530mA
Operating Temperature	-40~+85℃	Primary and Secondary Side Insulation Voltage	6500Vac
