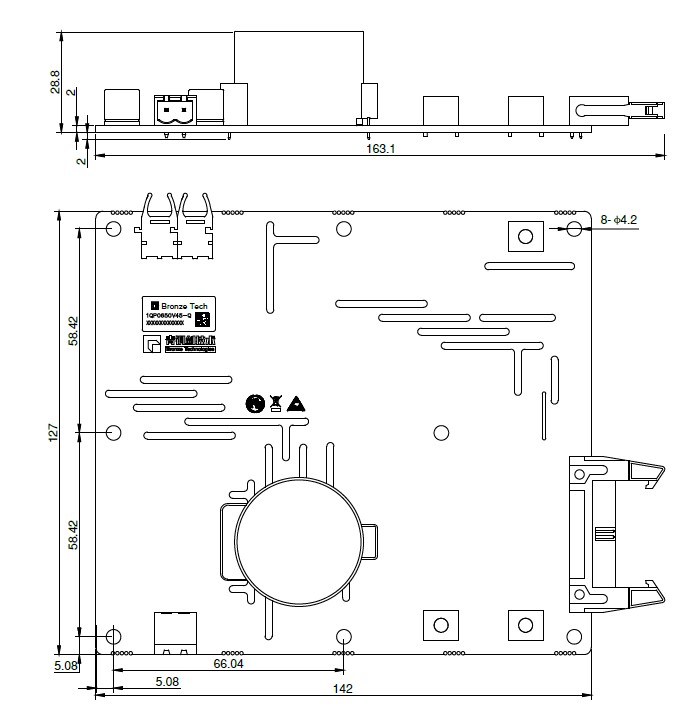

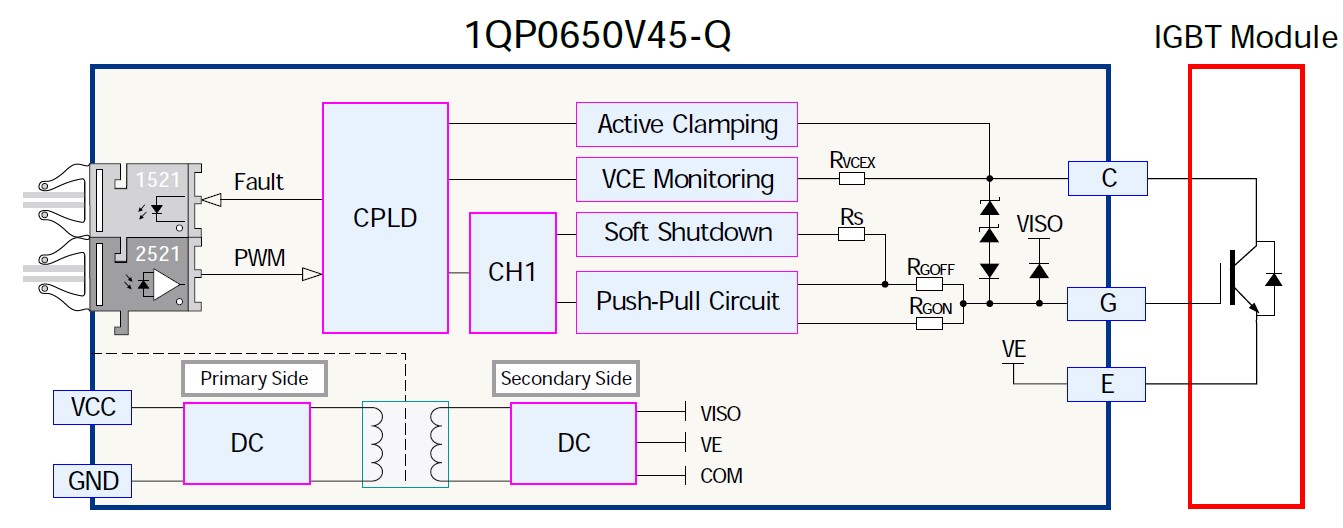

1QP0650V45-Q is a single channel, high power, high insulation voltage, compact driver composed of our ASIC chipset and CPLD chip design. It is designed for IGBT modules with crimping package below 4500V. The drive core board is fixed on the power unit shell or specially designed fixed base.
DC circuit breaker |
Rail power supply |
Locomotive traction |
Medium Voltage Inverter |
4500V Press-Pack IGBT Driver Solution |
Single-channel driving power: 6W, peak current ±50A |
10kVac isolation voltage |
Wide supply voltage range: 18V?25V |
Reverse polarity protection |
Fiber-optic PWM signal input |
Integrated isolated DC/DC power supply |
Integrated secondary power undervoltage lockout |
Integrated dynamic active clamping |
Integrated VCE short-circuit protection |
Integrated soft shutdown |
| Maximum Voltage of Power Device | 4500V | Maximum Switching Frequency | 10kHz |
| Turn-ON Voltage | 15V | Turn-OFF Voltage | -10V |
| Driving Power | 6W | Gate Driving Current | ±50A |
| Power Supply Voltage | 15V | Maximum Supply Current | - |
| Operating Temperature | -40~+85℃ | Primary and Secondary Side insulation Voltage | 10000Vac |
Follow us on WeChat
Typical Applications
Features
Key parameters
