2AB0635V65-Q

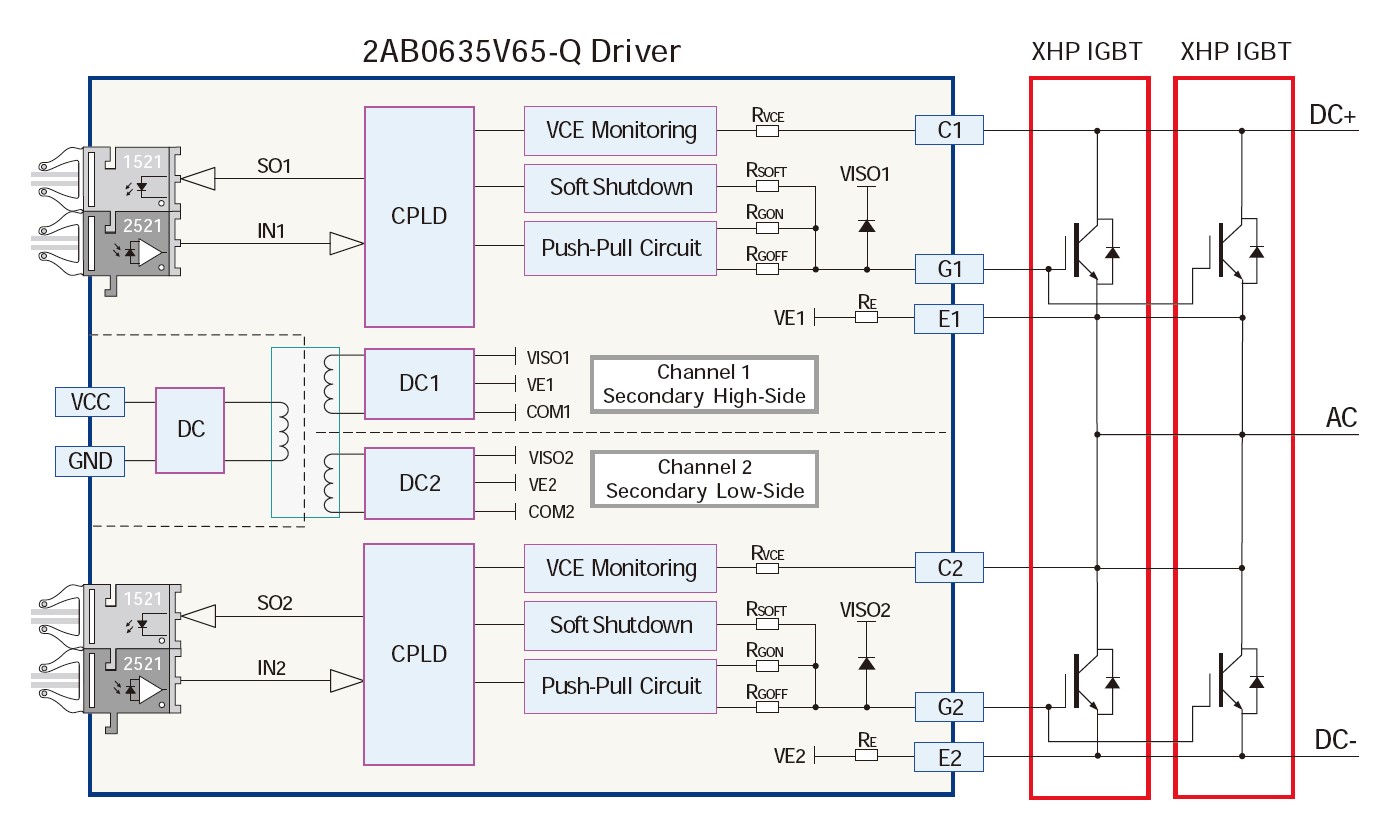

2AB0635V65-Q driver is a dual-channel, high-insulation, high-voltage, multi-parallel driver designed based on the CPLD digital chip and the driver chip independently developed by our company. The switching frequency can reach up to 100kHz ( no-load ). It is specifically designed for applications requiring dual-channel upper / lower half-bridges, high voltage levels ( 6500V and below ), and multi-parallel.
2AB0635V65-Q is suitable for infineon 's 6500V / 225A XHP packaged IGBT module FF225R65T3E3. This driver supports plug and play, and can directly fix the matching gate plate on the IGBT module through a screw without further transfer processing.

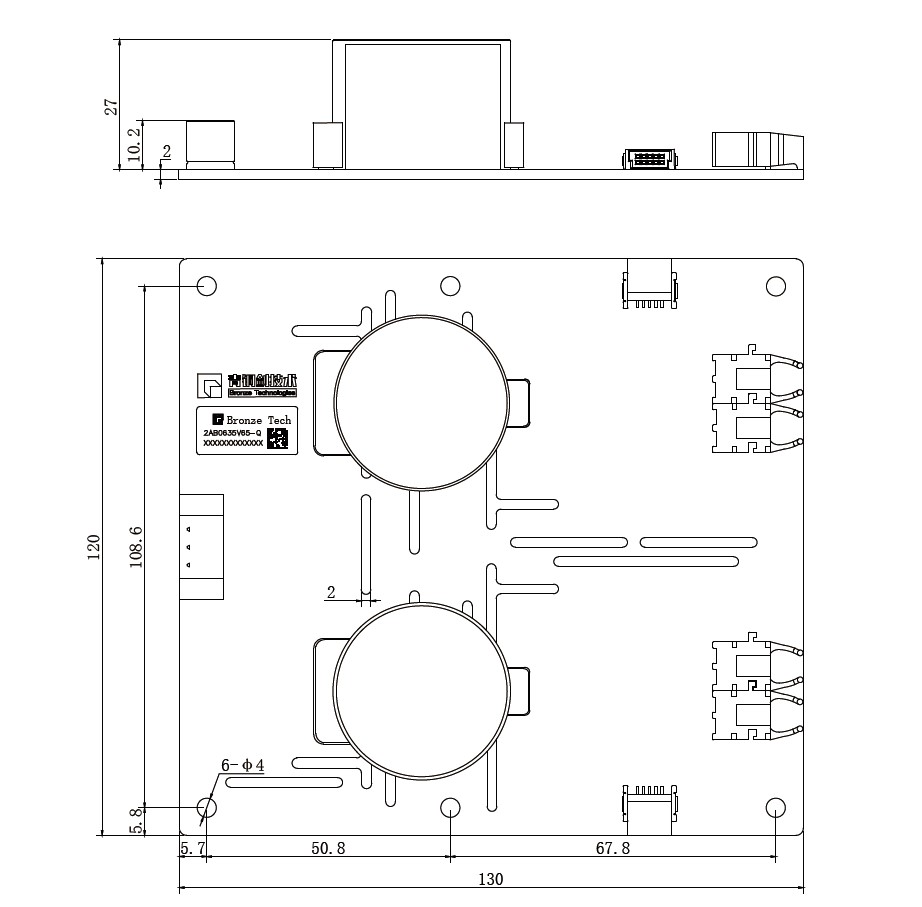

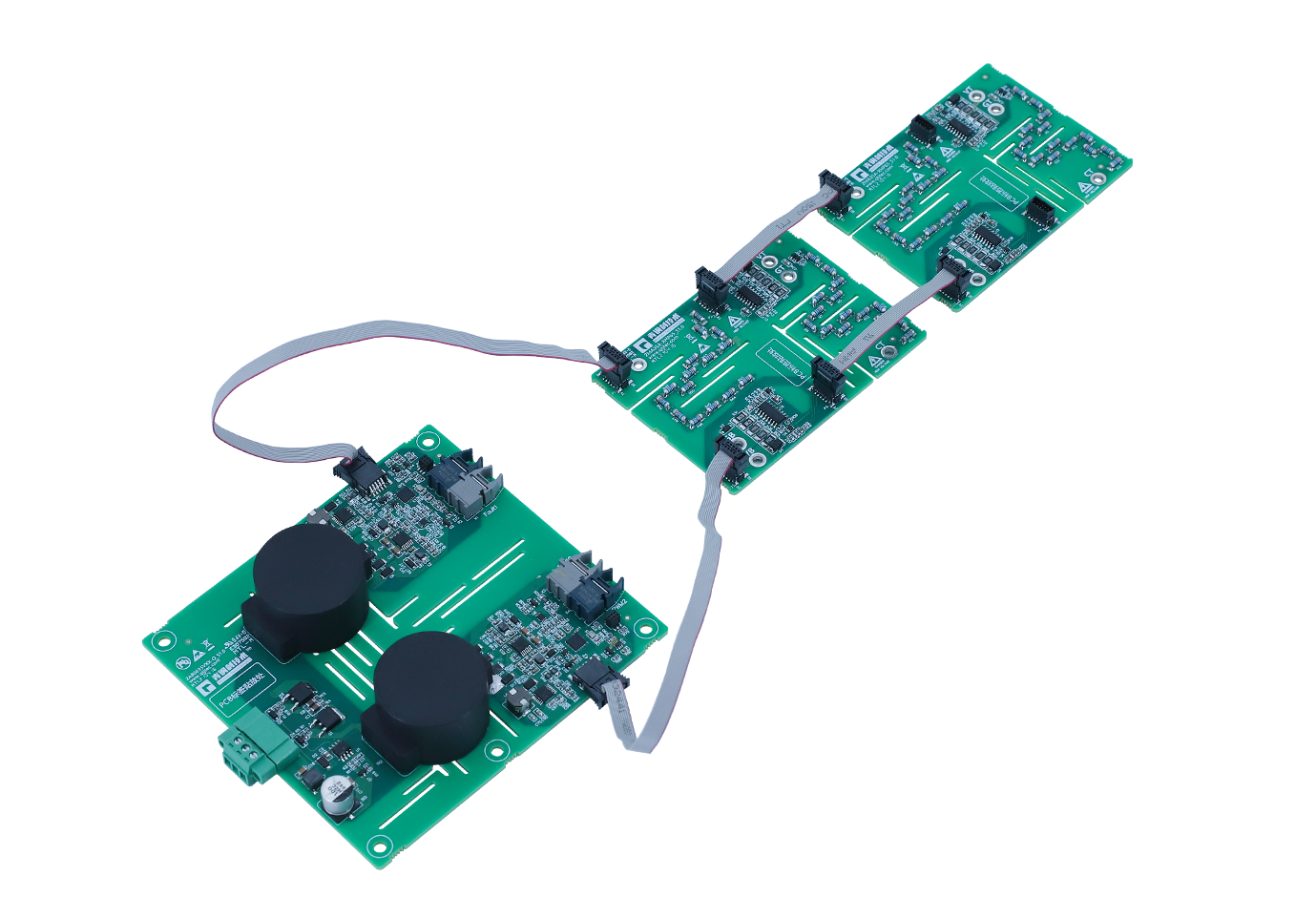

Note : 2AB0635V65-Q is the drive base plate, which needs to be matched with the gate plate : 2MA35A-XHP65, and the connection line : F3911C series to drive the IGBT module.
Features
6500V XHP-Package Half-Bridge IGBT Driver Solution |
Single-channel driving power: 6W, peak current ±35A |
Supports single-device/multi-parallel operation |
10kVac isolation voltage |
Switching frequency up to 100kHz |
Fiber-optic logic signal input/output |
Isolated DC/DC power supply |
Integrated undervoltage protection |
Integrated VCE short-circuit protection |
Integrated soft shutdown |
Key parameters
| Maximum Voltage of Power Device | 6500V | Maximum Switching Frequency | 100kHz |
| Turn-ON Voltage | 15V | Turn-OFF Voltage | -10V |
| Driving Power | 6W | Gate Driving Current | ±35A |
| Power Supply Voltage | 15V | Maximum Supply Current | - |
| Operating Temperature | -40~+85℃ | Primary and Secondary Side insulation Voltage | 10000Vac |
