    BTD5350x






	BTD5350x is a family of single-channel, isolated gate driver with peak output current up to 10A, available in SOP-8 (narrow-body) or SOW-8 (wide-body) packages and supports isolation voltages up to 3000Vrms and 5000Vrms respectively. They can be used to drive IGBTs and Si/SiC MOSFETs. BTD5350x family offers 3 Feature Options:




	BTD5350M provides Miller clamp function to prevent false turn-on caused by Miller current.




	BTD5350S provides a split output with rise and fall time individually configurable.




	BTD5350E provides UVLO in positive power supply of secondary-side to ensure that power devices get sufficient gate turn-on voltage.





                           BASiC_BTD5350x_Rev_1_0_EN













    Typical Applications











    Motor drives



    EV chargers



    Telecommunication power supplies











    EV power supplies



    UPS



    String solar inverters

















    Features











    Isolation voltage up to 5000Vrms(SOW-8)；3000Vrms(SOP-8)



    Peak output current up to 10A



    Propagation delay 60ns











    Maximum switching frequency 1MHz



    Primary-side supply 3~18V



    Secondary-side supply up to 33V











    Primary-side and secondary-side power supply undervoltage lockout (UVLO)



    Compatible with 3.3V, 5V and 15V input



    Operating Temperature -40~125℃

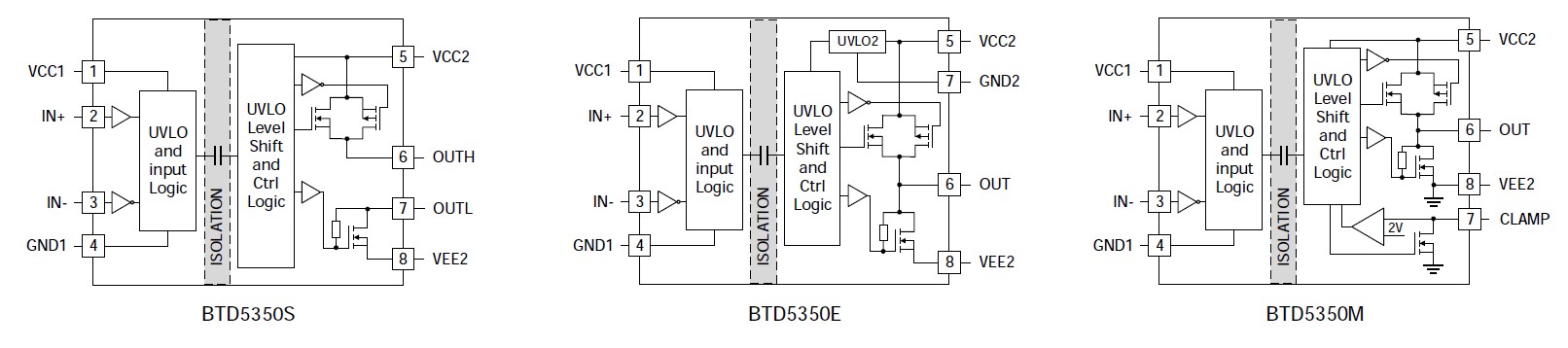

                                		Block Diagram




                                		Get a quick overview of overall system functionality.



                                View full size










    Key parameters
