    BTD25350x






	BTD25350x is a family of dual-channel, isolated gate driver with peak output current up to 10A, available in SOW-18 (wide-body) package and supports isolation voltages up to 5000Vrms. They can be used to drive IGBTs and Si/SiC MOSFETs. BTD25350x family offers 3 Feature Options:

BTD25350MM provides Miller clamp function to prevent false turn-on caused by Miller current.

BTD25350MS provides a split output with rise and fall time individually configurable.

BTD25350ME provides UVLO in positive power supply of secondary-side to ensure that power devices get sufficient gate turn-on voltage.











                           BASiC_BTD25350x_Rev_0_2_EN













    Typical Applications











    Motor drives



    EV chargers



    Telecommunication power supplies











    EV power supplies



    UPS



    String solar inverters

















    Features











    Isolation voltage up to 5000Vrms



    Peak output current up to 10A



    Propagation delay 60ns











    Maximum switching frequency 1MHz



    Primary-side supply 3~5V



    Secondary-side supply up to 33V











    Primary-side and secondary-side power supply undervoltage lockout (UVLO)



    Compatible with 3.3V, 5V input



    SOW-18 with 8.5mm creepage











    Operating Temperature -40~125℃

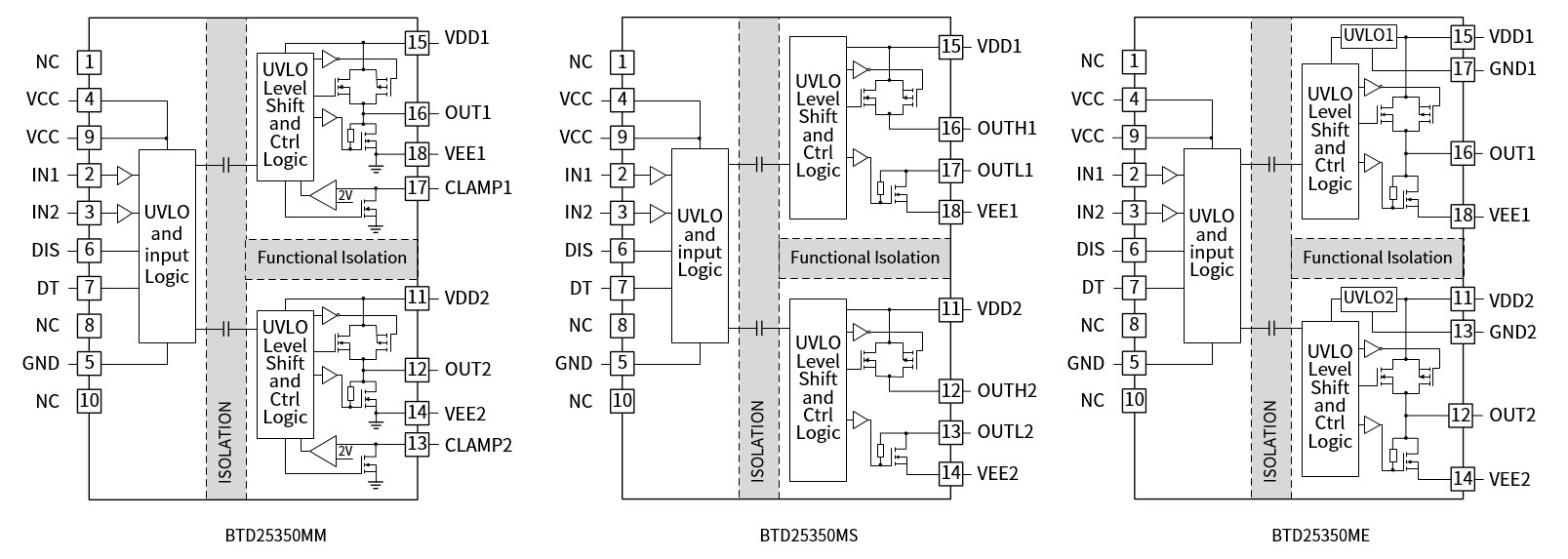

                                		Block Diagram




                                		Get a quick overview of overall system functionality.



                                View full size










    Key parameters
